Autobomba estatica cifa sobre camión

Static pump on lorry

PC607

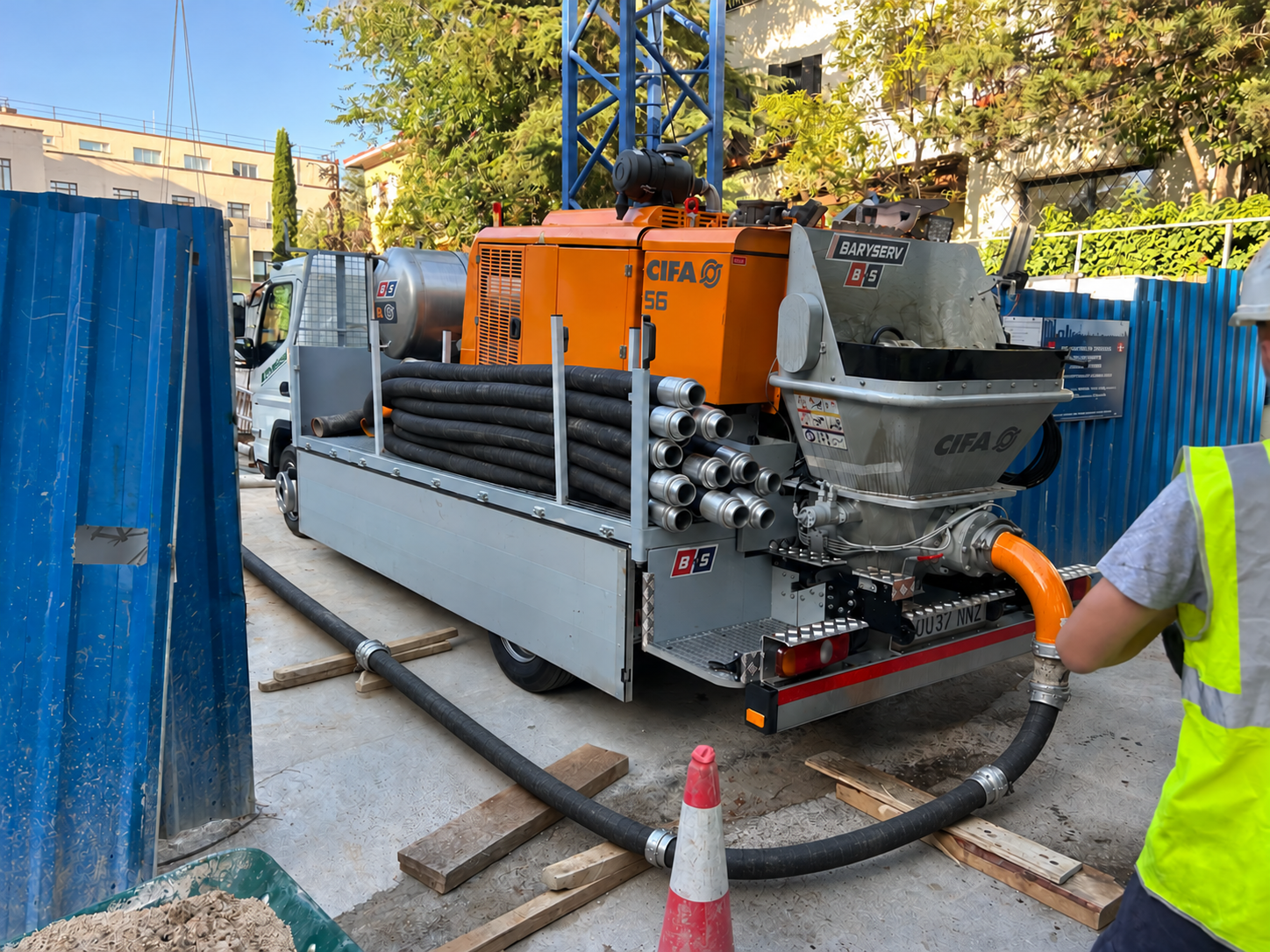

The model PC 607 it is a compact, high-performance static concrete pump, designed for pumping jobs where available space is limited, but the project demands power, reliability and continuity.

At Transgruma we offer the hire of CIFA PC 607 static concrete pump with operator, providing specialist equipment, technical expertise and manoeuvre planning to guarantee efficient pumping even in complex environments or with space limitations.

Maximum performance

37/59 m3/h

Max vertical reach

50 m

Max horizontal range

200 m

Technical information
Engine power. Diesel Stage IIIA kW 83 kW
Engine power Stage V Diesel85 kW
Power of the E engines N/A kW
Maximum theoretical output60 m3/h
Maximum concrete pressure 67 bar
Maximum strokes per minute 41
Pumping cylinders (bore x stroke)176 x 1000 mm
Capacity of the concrete reception hopper350 l
Dimensions in transport mode
Length 6.78 m
Width2.18 m
Height2.59 m
CIFA-Estatica sobre camión-Bombeo

Jobs where it fits best

Main applications of the PC607 static concrete pump

  • Confined spaces
  • Foundations

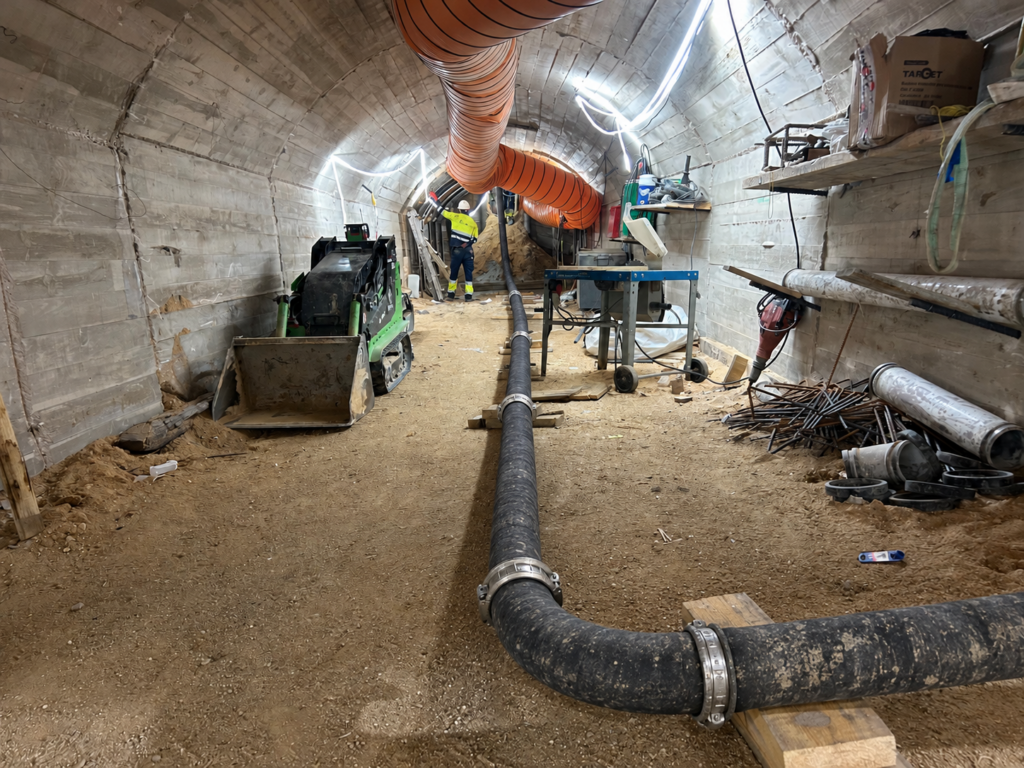

  • Tunnels
  • Buildings and civil engineering
  • Internal pumping
  • Work with continuous and controlled flow rate

FAQs

Frequently asked questions about the PC607 static concrete pump

The CIFA PC 607 static pump it is a suitable solution for construction sites where it is needed pump concrete remotely, at height or in areas difficult to access for a concrete pump. It is especially useful in foundations, tunnels, construction, civil engineering, interior pumping and work where a continuous and controlled flow rate is required.



The CIFA PC 607 offers an approximate output of 40 to 60 m³/h, which enables high-performance concrete pumping for medium-sized and demanding construction projects. In addition, it operates with pumping pressures of 67 to 105 bar, depending on the configuration and requirements of the project.

It is worth hiring a static pump when the project requires pumping concrete through piping, covering long distances, working in confined spaces or keeping the equipment stationary for several days. Unlike a mobile pump truck, the static pump allows for more flexible installation and can better adapt to complex projects or those with limited access.

Yes. The CIFA PC 607 incorporates an S-valve, designed to work with various types of concrete. This system promotes stable pumping, even in applications with high pressures or continuous, slow flow rates.

Hiring a static pump with an operator allows pumping to be carried out with greater safety, coordination and efficiency. The operator takes care of start-up, flow control, equipment supervision and subsequent cleaning, reducing downtime and avoiding errors during the manoeuvre. At Transgruma we offer the complete service so that the construction site does not have to worry about the technical management of the pumping.
